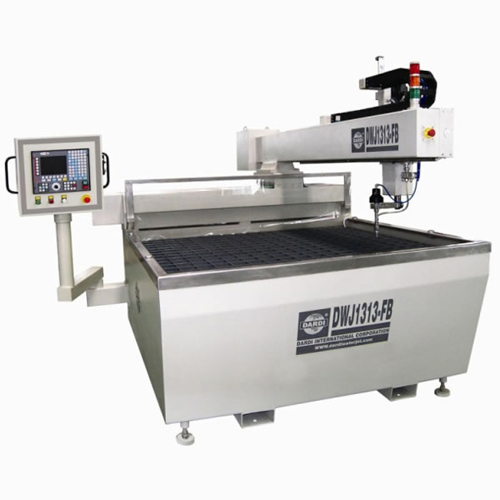

CNC Waterjet Cutting Table (DWJ13 Flying Arm)

Category : Economical Cantilever Style
Models : DWJ13-FB

DWJ13 CNC waterjet cutting table is a kind of flying arm or cantilever type waterjet cutting machine. It is manufactured in strict accordance with the ISO standard, so our worldwide customers feel secure to buy this product. DARDI is one of the leading manufacturers of CNC waterjet cutters in China. Since our establishment, we have kept on adopting new technologies in producing our products. Now we are able to provide customers with top quality CNC waterjet cutting tables. In addition to cantilever waterjet cutter, we also supply gantry waterjet cutting machine.

Advantages
Adopting special flying arm structure, it is easier to load and unload materials.
Featuring integrated design and compact structure, this water jet cutter saves land area.
DWJ13 CNC waterjet cutting table uses the imported servo motor to ensure cutting accuracy.
Internal black organ-style dustproof cover against dust and water can ensure the cleanness of the screw guide, further to ensure cutting accuracy and easy cleanness and maintenance of this CNC waterjet cutting machine.
Silent ball screw and linear guide guarantee transmission’s reliability, accuracy and minimize the noise at the same time.
This cantilever CNC waterjet cutting table is equipped with centralized automatic lubrication system. When the guide rail runs 10000 KM, the lubrication system will automatically conduct lubrication to ensure correct operation.
We provide automatic manual-operation system for this waterjet cutting machine. This can realize long-time operation and ensures the operator’s safety and convenience.
Specifications of DWJ13 Cantilever CNC Waterjet Cutting Table
Model DWJ1313-FB DWJ1320-FB DWJ1325-FB DWJ1331-FB
Travel
Bridge Travel 1.3 m
Base Travel 1.3 m 2.0 m 2.5 m 3.1 m
Z-axis Travel 130 mm/150 mm/210 mm (Optional)
Speed
Max. Travel Speed 20 m/min
Cutting Speed 0 to 8 m/min
Accuracy
Cutting Accuracy +/- 0.1 mm
Linear Accuracy +/- 0.1 mm
Repeatability Accuracy +/- 0.05 mm
Drive System
Drive Motor AC Servo (YASKAWA)
Drive System Ball Screw and Guide Rail
Water Tank
Max. Loading Capacity 250 kg per square meter
Cutting Heads
Cutting Heads 1-2 Std.
Controller
Controller WASHING/FAGOR (Optional)
NEWCAM Software std
Options for DWJ13 Flying Arm Waterjet Cutting Machine
Auto Sand Removal
Auto Water Level Control
Load and Unload Device
Auto Sand Feeder
Auto Distance Adjusting Device
Collision Alarm Device

DARDI is a China cantilever CNC waterjet cutting table manufacturer. In addition to this waterjet cutting machine, we also manufacture UHP waterjet cleaning system, CNC grinding machine, and so on. Through mass production, we effectively reduce the production cost, which enables us to provide high quality CNC waterjet cutting tables at competitive prices. If you have any need, please feel free to contact us. We look forward to cooperating with you.
